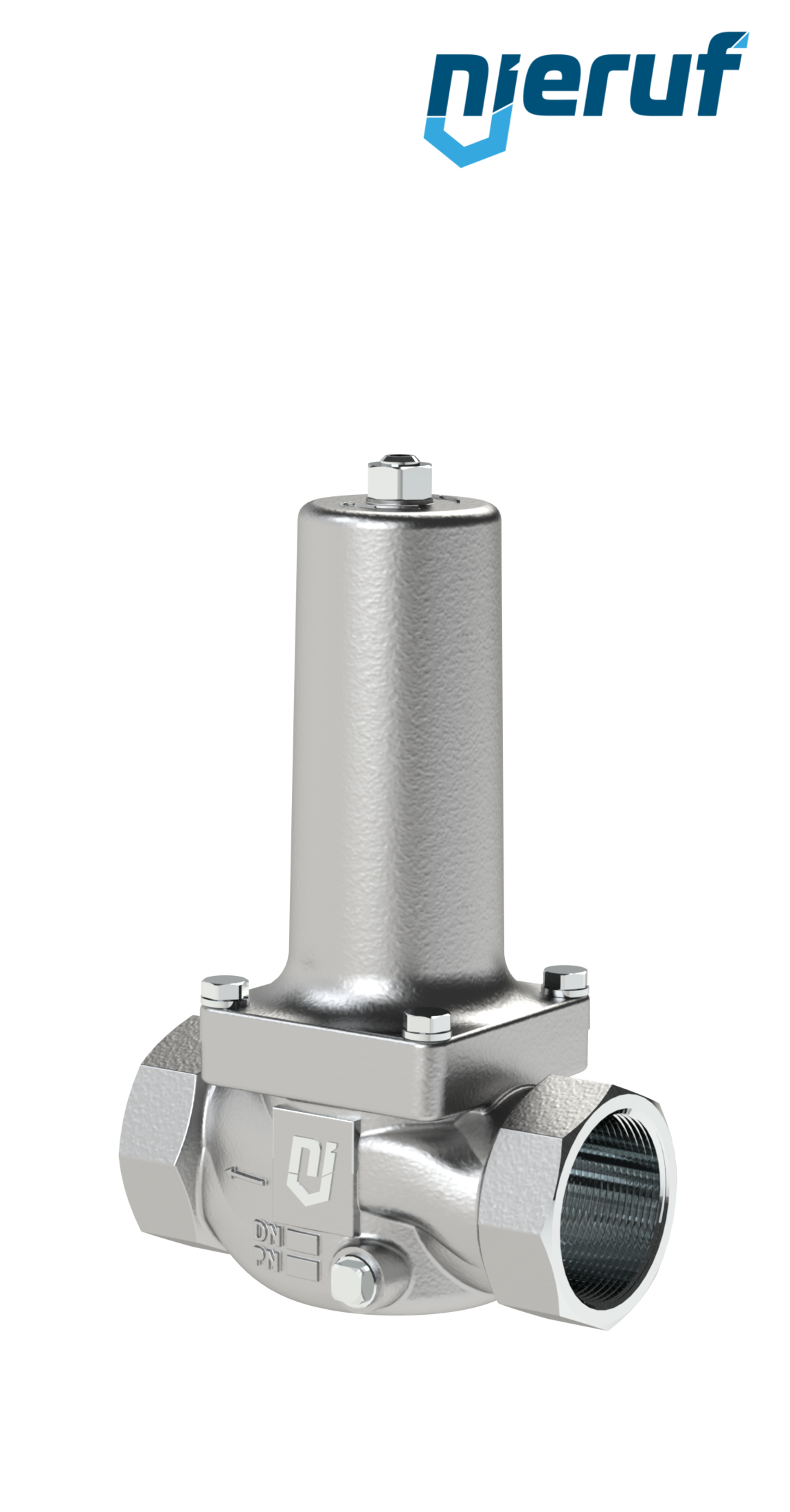

Article no. : DM21020008 product: steam pressure reducing valve type: DM21 manufacturer: NieRuf diameter: 2" Inch connection: female thread material: stainless steel seal: PTFE / EPDM / FEPM media: steam and hot water temperature: +20°C up to +200°C range of adjustment: 4.0 - 10.0 bar max. inlet pressure: 16 bar design: straightway form installation position: any position, preferably spring bonnet upside down product feature: High quality pressure reducing valve made of stainless steel for steam. This version is piston-controlled, spring-loaded and inlet pressure relieved.

We do not adhere to rigid guidelines but instead focus on the individual wishes and needs of our customers. They are more important to us than internal company processes.

Quickly and easily transfer the specification of our valves to your tender text or specification of services. Simply copy the text field below and paste it into your tender.

Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com

Technical and commercial expertise form the basis for developing qualified solutions tailored precisely to the needs of our customers.

We always strive to find the best solution for our customers. It is our goal and incentive to have completely satisfied customers.

Datasheet PDF - 565.21 KiB

steam pressure reducing valve 2" Inch female thread made of stainless steel seal PTFE / EPDM / FEPM for steam and hot water, set pressure 4.0 - 10.0 bar

3D model STP - 3.2 MiB

Delivery time: 3 - 5 working days

Commitment engenders trust. We stand by our word and are convinced that as a result not only our customers but also everyone we work with can rely on us.

Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
